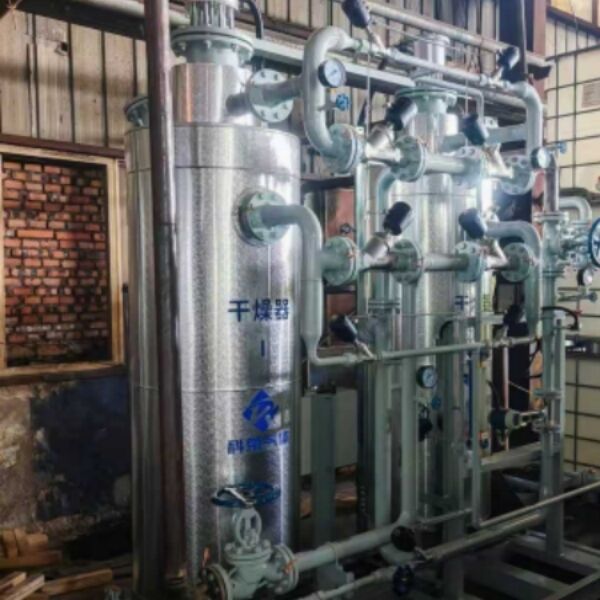

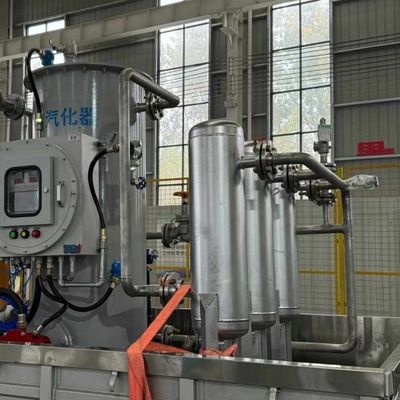

Touch-Screen Interface Ammonia Dissociation Unit With ISO9001 Certificate
Ürün ayrıntıları:
| Menşe yeri: | Çin |
| Marka adı: | KERONG GAS |
| Sertifika: | ISO9001 |
| Model numarası: | ANH,NHP |
Ödeme & teslimat koşulları:
| Min sipariş miktarı: | 1 adet |
|---|---|
| Fiyat: | negotiable |
| Ambalaj bilgileri: | ahşap kutu |
| Teslim süresi: | 8 hafta |
| Ödeme koşulları: | L/C, T/T, Western Union, MoneyGram |
| Yetenek temini: | Yılda 1000 pc |
|
Detay Bilgi |
|||
| İsim: | Amonyak Ayrıştırma Ünitesi | Katalizör: | nikel katalizörü |
|---|---|---|---|
| Çiy noktası: | -70 ℃ | Malzeme: | Paslanmaz Çelik veya Karbon Çelik |
| Kapasite: | 5Nm3/saat~250Nm3/saat | Basınç: | 0,5bar veya daha fazla |
| Vurgulamak: | touch-screen ammonia cracker unit,ISO9001 certified ammonia dissociation unit,industrial ammonia cracker with touch interface |
||
Ürün Açıklaması
Touch-Screen Interface Ammonia Dissociation Unit With ISO9001 Certificate
Product description
Our Touch-Screen Interface Ammonia Dissociation Unit with ISO9001 Certificate is designed to deliver reliable dissociated ammonia gas for heat treatment, annealing, brazing, and metallurgical applications. Using advanced thermal dissociation technology, it converts ammonia into a stable hydrogen-nitrogen protective atmosphere with consistent quality and flow. The intuitive touch-screen interface enables easy operation, real-time monitoring, and precise control of temperature, pressure, and system status. Certified under ISO9001 quality standards, the unit ensures dependable performance, safety, and manufacturing consistency. Fully automatic, energy-efficient, and low-maintenance, it is built with durable materials for long service life, offering a cost-effective and user-friendly industrial atmosphere generation solution.
Technical Parameters
Capacity: 5-250Nm³/h
Dew point :-70 ℃
Oxygen content: less than 3ppm
Ammonia content: less than 3ppm
| Model | Capacity | Power consumption | Liquid ammonia consumption | Cooling water consumption | Dimensions |
| (Nm3/h) | (KW) | kg/hr | m3/hr | mm | |
| ANH-NHP-5 | 5 | 6.5 | 1.89 | N/A | 1400*1180*1600 |
| ANH-NHP-10 | 10 | 13 | 3.79 | N/A | 1440*1340*1600 |
| ANH-NHP-20 | 20 | 24 | 7.58 | 0.2 | 2200*1435*1800 |
| ANH-NHP-30 | 30 | 34 | 11.36 | 0.2 | |
| ANH-40 | 40 | 36 | 15.15 | 0.25 | 1870*2065*2570 |
| NHP-40 | 40 | 3 | N/A | 1530*880*2010 | |
| ANH-50 | 50 | 44 | 18.94 | 0.25 | 1870*2065*2570 |
| NHP-50 | 50 | 3 | N/A | 1530*860*2010 | |
| ANH-60 | 60 | 52 | 22.73 | 0.25 | 1870*2065*2570 |
| NHP-60 | 60 | 3 | N/A | 1530*860*2010 | |
| ANH-70 | 70 | 58 | 26.52 | 0.42 | 1870*2065*2570 |
| NHP-70 | 70 | 6 | N/A | 1480*900*2050 | |
| ANH-80 | 80 | 64 | 30.30 | 0.42 | 1870*2065*2570 |
| NHP-80 | 80 | 6 | N/A | 1480*900*2050 | |
| ANH-90 | 90 | 88 | 34.09 | 0.65 | 1990*2295*2580 |
| NHP-90 | 90 | 6 | N/A | 1800*1000*2050 | |
| ANH-100 | 100 | 83 | 37.88 | 0.65 | 1990*2295*2580 |
| NHP-100 | 100 | 6 | N/A | 1800*1000*2050 | |
| ANH-110 | 110 | 104 | 41.67 | 0.65 | 1990*2295*2580 |
| NHP-110 | 110 | 6 | N/A | 1800*1000*2250 | |
| ANH-120 | 120 | 104 | 45.45 | 0.65 | 1990*2295*2580 |
| NHP-120 | 120 | 6 | N/A | 1800*1000*2250 | |
| ANH-140 | 140 | 117 | 53.03 | 0.85 | 1990*2295*3078 |
| NHP-140 | 140 | 9 | N/A | 1800*1000*2450 | |
| ANH-150 | 150 | 138 | 56.82 | 0.85 | 1990*2295*3078 |
| NHP-150 | 150 | 9 | N/A | 1800*1000*2650 | |
| ANH-160 | 160 | 138 | 60.61 | 0.85 | 1990*2295*3078 |
| NHP-160 | 160 | 9 | N/A | 1800*1000*2650 | |
| ANH-180 | 180 | 155 | 68.18 | 1.15 | 2290*2620*3100 |
| NHP-180 | 180 | 13.5 | N/A | 2150*1000*2785 | |
| ANH-200 | 200 | 155 | 75.76 | 1.15 | 2290*2620*3100 |
| NHP-200 | 200 | 13.5 | N/A | 2150*1000*2595 | |
| ANH-250 | 250 | 196 | 94.70 | 1.3 | 2520*2775*3150 |
| NHP-250 | 250 | 13.5 | N/A | 2150*1000*2600 |
