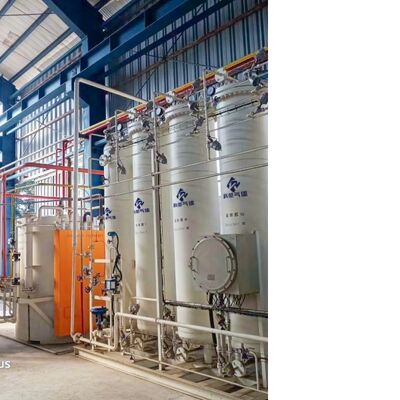

Low Water Content Ammonia Dissociation Unit With 7bar Outlet Pressure
Ürün ayrıntıları:
| Menşe yeri: | Çin |
| Marka adı: | KERONG GAS |
| Sertifika: | ISO9001 |
| Model numarası: | ANH,NHP |
Ödeme & teslimat koşulları:
| Min sipariş miktarı: | 1 adet |
|---|---|
| Fiyat: | negotiable |
| Ambalaj bilgileri: | ahşap kutu |
| Teslim süresi: | 8 hafta |
| Ödeme koşulları: | L/C, T/T, Western Union, MoneyGram |
| Yetenek temini: | Yılda 1000 pc |
|
Detay Bilgi |
|||
| İsim: | Amonyak Ayrıştırma Ünitesi | Katalizör: | nikel katalizörü |
|---|---|---|---|
| Çiy noktası: | -70 ℃ | Malzeme: | Paslanmaz Çelik veya Karbon Çelik |
| Kapasite: | 5Nm3/saat~250Nm3/saat | Basınç: | 0,5bar veya daha fazla |
| Vurgulamak: | Low water content ammonia cracker,7bar outlet pressure ammonia dissociator,Industrial ammonia dissociation unit |
||
Ürün Açıklaması
Low Water Content Ammonia Dissociation Unit With 7bar Outlet Pressure
Product description
Our Low Water Content Ammonia Dissociation Unit with 7bar Outlet Pressure is designed to generate high-quality dissociated ammonia gas for heat treatment, annealing, brazing, and metallurgical applications. Utilizing advanced thermal dissociation technology and an efficient gas purification system, it produces a hydrogen-nitrogen atmosphere with very low moisture content, helping prevent oxidation and improve product quality. The unit delivers a stable 7bar outlet pressure, making it suitable for direct use in various industrial processes. Fully automatic and equipped with precise temperature and pressure controls, it ensures reliable operation, energy efficiency, and low maintenance. Built with durable materials and robust safety features, this unit provides a dependable and cost-effective protective atmosphere solution.
Technical Parameters
Capacity: 5-250Nm³/h
Dew point :-70 ℃
Oxygen content: less than 3ppm
Ammonia content: less than 3ppm
| Model | Capacity | Power consumption | Liquid ammonia consumption | Cooling water consumption | Dimensions |
| (Nm3/h) | (KW) | kg/hr | m3/hr | mm | |
| ANH-NHP-5 | 5 | 6.5 | 1.89 | N/A | 1400*1180*1600 |
| ANH-NHP-10 | 10 | 13 | 3.79 | N/A | 1440*1340*1600 |
| ANH-NHP-20 | 20 | 24 | 7.58 | 0.2 | 2200*1435*1800 |
| ANH-NHP-30 | 30 | 34 | 11.36 | 0.2 | |
| ANH-40 | 40 | 36 | 15.15 | 0.25 | 1870*2065*2570 |
| NHP-40 | 40 | 3 | N/A | 1530*880*2010 | |
| ANH-50 | 50 | 44 | 18.94 | 0.25 | 1870*2065*2570 |
| NHP-50 | 50 | 3 | N/A | 1530*860*2010 | |
| ANH-60 | 60 | 52 | 22.73 | 0.25 | 1870*2065*2570 |
| NHP-60 | 60 | 3 | N/A | 1530*860*2010 | |
| ANH-70 | 70 | 58 | 26.52 | 0.42 | 1870*2065*2570 |
| NHP-70 | 70 | 6 | N/A | 1480*900*2050 | |
| ANH-80 | 80 | 64 | 30.30 | 0.42 | 1870*2065*2570 |
| NHP-80 | 80 | 6 | N/A | 1480*900*2050 | |
| ANH-90 | 90 | 88 | 34.09 | 0.65 | 1990*2295*2580 |
| NHP-90 | 90 | 6 | N/A | 1800*1000*2050 | |
| ANH-100 | 100 | 83 | 37.88 | 0.65 | 1990*2295*2580 |
| NHP-100 | 100 | 6 | N/A | 1800*1000*2050 | |
| ANH-110 | 110 | 104 | 41.67 | 0.65 | 1990*2295*2580 |
| NHP-110 | 110 | 6 | N/A | 1800*1000*2250 | |
| ANH-120 | 120 | 104 | 45.45 | 0.65 | 1990*2295*2580 |
| NHP-120 | 120 | 6 | N/A | 1800*1000*2250 | |
| ANH-140 | 140 | 117 | 53.03 | 0.85 | 1990*2295*3078 |
| NHP-140 | 140 | 9 | N/A | 1800*1000*2450 | |
| ANH-150 | 150 | 138 | 56.82 | 0.85 | 1990*2295*3078 |
| NHP-150 | 150 | 9 | N/A | 1800*1000*2650 | |
| ANH-160 | 160 | 138 | 60.61 | 0.85 | 1990*2295*3078 |
| NHP-160 | 160 | 9 | N/A | 1800*1000*2650 | |
| ANH-180 | 180 | 155 | 68.18 | 1.15 | 2290*2620*3100 |
| NHP-180 | 180 | 13.5 | N/A | 2150*1000*2785 | |
| ANH-200 | 200 | 155 | 75.76 | 1.15 | 2290*2620*3100 |
| NHP-200 | 200 | 13.5 | N/A | 2150*1000*2595 | |
| ANH-250 | 250 | 196 | 94.70 | 1.3 | 2520*2775*3150 |
| NHP-250 | 250 | 13.5 | N/A | 2150*1000*2600 |
