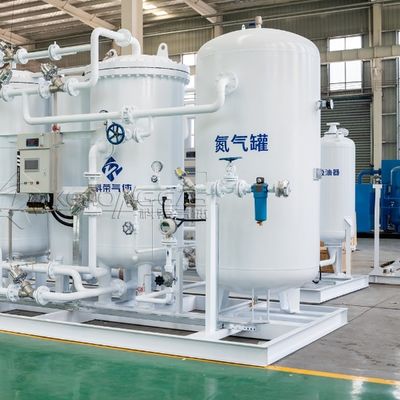

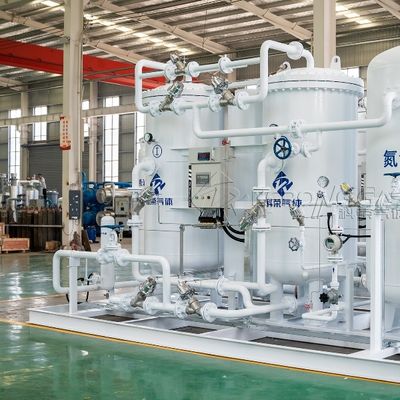

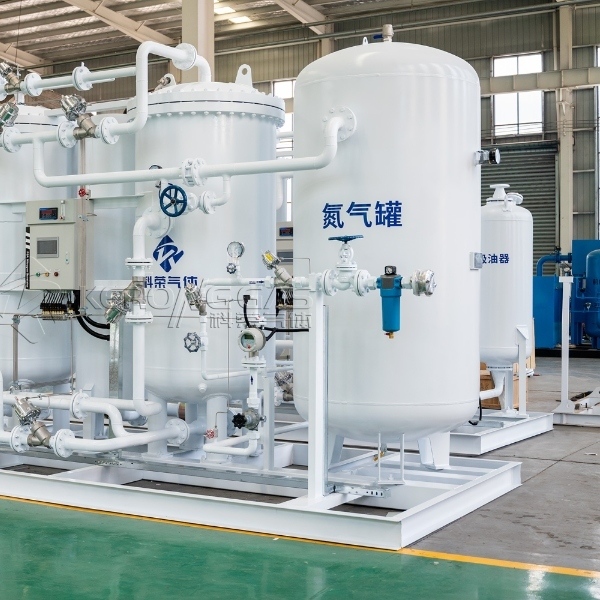

Quick Setup Nitrogen Air Separation Unit For Stainless Steel Brazing
Ürün ayrıntıları:
| Menşe yeri: | ÇİN |
| Marka adı: | KERONG GAS |
| Sertifika: | ISO9001, CE, ASME |
| Model numarası: | KRN |
Ödeme & teslimat koşulları:
| Min sipariş miktarı: | 1 PC |
|---|---|
| Fiyat: | negotiable |
| Ambalaj bilgileri: | Ahşap kutu |
| Teslim süresi: | 8 hafta |
| Ödeme koşulları: | L/C, T/T, Western Union, MoneyGram |
| Yetenek temini: | Yılda 1000 pc |
|
Detay Bilgi |
|||
| İsim: | Azot Hava Ayırma Ünitesi | Saflık: | %90 ~ 99.9999 |
|---|---|---|---|
| Çiy noktası: | -45 ℃ veya daha fazla | Malzeme: | Paslanmaz çelik veya karbon çelik |
| Kapasite: | 5nm3/saat ~ 5500nm3/saat | Basınç: | Ayarlanabilir |
| Vurgulamak: | PSA nitrogen gas generator for brazing,quick setup nitrogen air separation unit,stainless steel brazing nitrogen generator |
||
Ürün Açıklaması
| Attribute | Value |
|---|---|
| Name | Nitrogen Air Separation Unit |
| Purity | 90%~99.9999% |
| Dew point | -45℃ or more |
| Material | Stainless steel or carbon steel |
| Capacity | 5Nm3/hr~5500Nm3/hr |
| Pressure | Adjustable |
Our Quick Setup Nitrogen Air Separation Unit provides high-purity nitrogen (up to 99.99%) for stainless steel brazing, ensuring oxidation-free, precise joint formation. Utilizing advanced Pressure Swing Adsorption (PSA) or membrane separation technology, it separates nitrogen from compressed air to deliver a continuous, reliable on-site supply. The skid-mounted, pre-assembled design allows rapid installation and setup, minimizing downtime and eliminating complex assembly. Equipped with automated controls, air drying, and filtration systems, it ensures stable pressure, consistent purity, and energy-efficient operation. Ideal for industrial stainless steel fabrication, this unit delivers dependable nitrogen supply, enhancing brazing quality and operational efficiency.
| Model | Nitrogen flow rate(Nm3/hr) | Purity(%) | Air need(m3/min) | Net dimensions(mm) |
|---|---|---|---|---|
| KRN159 | 7 | 99 | 0.33 | 1200*600*1900 |
| 6 | 99.5 | 0.32 | ||
| KRN219 | 15 | 99 | 0.7 | 1200*600*1900 |
- Online monitoring of oxygen purity, pressure, flow rate and dew point.
- Unqualified oxygen sound and light alarm, long time alarm automatic stop, unqualified automatic oxygen emptying.
- Air dryer and air filters automatic drainer discharge.
- Automatic warning of spare parts replacement.
- Remote control / fully automatic
- Molecular sieve automatic compaction
- Pneumatic valve switching by programmable controller automatic control
- The IPC, DCS, the specific configuration of other specific programs
